Voľba vhodného osvetlenie nám výrazným spôsobom umocní celkový
dojem z akcie. Osvetlenie môžeme rôznym spôsobom kombinovať z ďalšími prvkami
multimedialných produktov ako je napr. laser, videoprojekcia a iné. Špičkové
osvetlenie tvorí neoddeliteľnú súčasť top akcie. |
AVOLITES PERL.
Perl 2000 kombinuje kompaktné
rozmery a veľký výkon, Dáva možnosť úplnej kontroly pre 240 inteligentných
zariadení. AVOLITES PERL je navrhnutý pre rýchle a jednoduché programovanie a rýchle
spustenie jednotlivých scén a programov.
Poskytuje funkcie preset pre
rýchlu stavbu scén a programov, Kanály môžu byť pridelené ako HTP alebo LTP |
 |
|
PULSAR
master piece je svetelný pult navrhnutý pre divadlá a diskotéky. Obsahuje PMX, DMX a
má 108 alebo 216 plne programovateľných kanálov. |
|
|

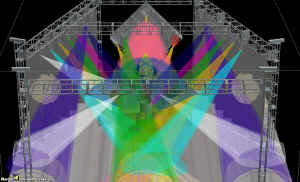

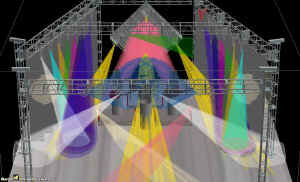

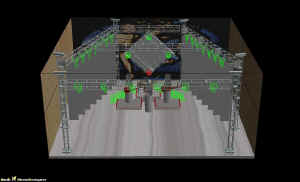

Martin Show Designer umožňuje navrhnutie a naprogramovanie
svetelnej scény.
Tento jedinečný design
software je vynikajúci prezentačný nástroj. Dokáže navrhovať scény a projekty s
realistickým správaním v čase a 3D priestore a šetrí čas a peniaze na výrobe
rozpočtu. Show Designer dokáže veľmi realisticky predviesť správanie
svetiel v každom priestore. |
 |
At last total
control of real power is yours. The
F.A.L. 2500 XLDX
NE combines an
amazing collection of functions with true power
of an HMI 2500 lamp in a very attractive new
body. Light output is effectively double that of
an equivalent HMI 1200 unit.
Extremely smooth linear mirror movement is
provided by a new mirror drive system.
A quick look at the technical specifications
listed will show that the F.A.L. 2500 XLDX NE is
a fully featured top class projector and with
the lamp power behind these features you have a
beam that will really go the distance.
|
|
|
|
Power supply |
External power supply unit with
built-in power facto correction suitable for 208V, 230V and 240V
supplies at 50Hz or 60Hz. |
Power consumption |
3500VA at 230V. |
|
Lamp |
HMI 2500/GS discharge lamp.
Colour temperature 6000K.
Socket Sfa 21-12, life 500 hours (manufacturer ratings). |
Colours |
Full Cyan, Yellow, Magenta colour
mixing.
1 colour wheel carrying 7 dichroic filters with high chromatic yield
+ white.
Variable speed continuous colour wheel bi-directional rotation to
produce Rainbow effect and split colours. |
|
Motors |
15 stepper motors controlled by the
internal microprocessor. |
Control system |
Standard DMX 512 with digital display
and 4 buttons.
14 control channels, 16 if used with High resolution Pan and Tilt
setting.
Stand alone: possibility to operate in groups of four with internal
sequence. |
|
Optical system |
Dual condenser lens system and high
reflectivity parabolic reflector plus anti reflection coated focus
lens for optimum light output. |
Cooling |
Both axial and tangential fans with
channeled airflow for quiet operation. |
|
Housing |
Extruded aluminium with epoxy paint
finish.
Easy access to lamp and main components.
Protection: IP 20. |
|
|
|
Shutter strobe dimmer |
Fast action twin blade shutter system
for high speed beam blackout also provides strobe effect with 14
strobe speed and linear dimming. |
Rotating gobos |
4 indexable interchangeable rotating M
size gobos + clear (gobo diameter 66mm, image diameter 49.5mm max).
Projector accepts dichroic gobos. |
|
Beam divergence |
3 projected beam angles remotely
selectable via DMX: 9.8°, 11.1°, 13.3°. |
|
|
|
Weight |
Projector: 62kg. Ballast: 33kg. |
Focus |
Motorised focus system. Focus between
2.5m and infinity. |
|
Frost |
1 Frost filter for diffusion effect. |
Iris |
Noiseless high speed motorised Iris
system. |
|
Mirror movement |
New and innovative mirror drive system
for extremely smooth linear mirror movement at all speeds.
The mirror head assembly may be adjusted through 80°. |
Movement |
Pan rotation through 170°, Tilt
movement through 80°. |
|
Prism |
1 x 3 facet prism, 1 x 4 facet prism, 1
x 5 facet prism; prisms may be rotated in either direction at
variable speeds. |
|
|
|
|
 |
ROBE ColorSpot 1200 AT
|
|
The ColorSpot 1200 is
the latest addition to Robe’s comprehensive AT (Advanced Technology)
family of moving head and colour changing fixtures. It is designed
as the ultimate creative tool for large theatre, TV and live shows,
and for installations in multi-purpose venues and large clubs.
The fixture uses a powerful Philips 1200 SA discharge lamp
lightsource. This is further boosted by a high quality
super-efficient optical system, making the ColorSpot 1200 one of the
brightest moving fixtures currently on the market.
Major features include a versatile CMY colour mixing system,
variable CTO plus an additional colour wheel, 12 rotating indexable,
replaceable dichroic glass gobos on two wheels offering 48 gobo
combinations, iris, 4 rotating prisms and effects, variable frost,
an incredibly flexible 13 – 42 degree linear zoom, remote focus,
dimmer and shutter.
Its progressive colour temperature correction system – from 5600K to
3200K is designed for use in television and film applications. |
Source
- Lamp: 1200W
short arc discharge , Approved model: Philips MSR 1200 SA ,
Control: Automatic and remote on/off
|
Gobos
- Outside
diameter: 37,5 +0/-0,25mm , Image diameter: 31,5mm , Thickness:
1,1mm up to 6mm in rotating slots , Material: High-temeperature
Borofloat glass
|
Prisms and Effects
- Outside
diameter: 47 +0/-0,3 mm , Thickness: up to 5mm in rotating slots
(up to 8mm in the center)
|
Control and Programming
- Protocol: USITT
DMX-512 , Control channels: 24-32 , Setting & Addressing: ROBE
Navigation System (RNS) , Display: Blue/white LCD graphic ,
Pan/Tilt resolution: 8- or 16-bit , Gobo indexing: 8- or 16-bit
, Prism indexing: 8- or 16-bit , Movement control: Tracking and
vector , Movement control: Tracking and vector , Ethernet port:
Art-Net protocol, ready for ACN, Data in/out: Locking 3-pin &
5-pin XLR
|
Electromechanical Effects
- Cyan: 0 - 100%
, Magenta: 0 - 100% , Yellow: 0 - 100% , CTO: 0 - 100% , Colour
wheel: 6 replaceable 'SLOT&LOCK' colours + open , Gobo wheel 1:
6 rotating, indexable, replaceable 'SLOT&LOCK' dichroic glass
gobos + open , Gobo wheel 2: 6 rotating, indexable, replaceable
'SLOT&LOCK' dichroic glass gobos + open , Iris: Motorized,
stepless
- Effect wheel: 4
rotating, indexable, replaceable 'SLOT&LOCK' prisms and effects
+ open , Frost effect: Separate, variable , Dimmer/Shutter: Full
range dimming and variable strobo effect , Focus: 2m -
infinity , Zoom: 13° - 42° , Pan: 530° , Tilt: 280°
|
|
|
 |
| ROBE WASH 575 XT |
Source
- Lamp: Compact high-pressure
metal halide lamp , Approved model: Philips MSR 575W/2 ,
Control: Automatic and remote on/off
|
Optical System
- Motorized multi-step zoom
between 7° and 28° beam angles , Fresnel lens of diameter 200 mm
|
Control and Programming
- Protocol: USITT DMX-512 ,
Control channels: 16 , Bilt-in demo sequences , Display: 4-digit
LED display , Pan/Tilt resolution: 8- or 16-bit , Master/slave
operating , Controllable speed of fans , Movement control:
Tracking and vector , Buit-in analyzer for easy fault finding ,
Data in/out: Locking 3-pin XLR
|
Electromechanical Effects
- CMY colours mixing system ,
Colour wheel: 4 dichroic filters + open, 3200K and 5600K
correction filters,UV filter , Effect wheel: Beam shaper and
frost filter , Dimmer/Shutter: Full range dimming and variable
strobo effect , Iris: Motorized iris for different beam
diameters , Focus: motorized focus , Pan: 530° , Tilt: 280° ,
Maximum Pan-movement 530° in 2.65s , Maximum Tilt-movement 280°
in 1.68s
|
|
|
 |
| ROBE 1200 XT |
Source
- Lamp: Osram HMI 1200W/GS ,
Base: SFc15,5 , Control:
Automatic and remote on/off
|
Optical System
- Multistep zoom lenses system
(15°, 21°, 28°)
|
Gobos
- Outside diameter - metal
gobos: 53.3 mm, dichroic gobo: 53.1 and glass gobo: 49.8mm
Thickness - metal gobos: 0.15mm (steinless steel); dichroic
gobos: 1.1mm (high temperature borofloat or better glass); glass
gobos: Max. thickness = 4mm (high temperature borofloat or
better glass)
|
Control and Programming
- Protocol: USITT DMX-512 ,
Control channels: 16 , Bilt-in demo sequences , Display: 4-digit
LED display , Pan/Tilt resolution: 8- or 16-bit , Master/slave
operating , Controllable speed of fans , Buit-in analyzer for
easy fault finding, Data in/out: Locking 3-pin XLR
|
Electromechanical
Effects
- Colour wheel 1: 8 dichroic
filters + open , Colour wheel 2: 5 dichroic filters, colour
temperature filters 3200K, 5600K and UV filter + open , Static
gobo wheel:5 metal gobos + open , Rotating gobo wheel: 5
rotating, indexable, replaceable gobos + open, Effect wheel:
3-facet prism, 5-facet prism, 5-linear facet prism rotating in
both directions at different speeds ,
Dimmer/Shutter: Full range
dimming and variable strobo effect ,
Focus: motorized focus , Max. pan
movement range: 143.4° , Max. tilt movement range: 114.7°
|
|
|
MARTIN
MAC 500 a MAC 600 moving head, patria k svetovej špičke medzi svetlami..
MAC 500 je automatizovaná
rotačná hlava, slúžiaca ako profilový reflektor navrhnutá pre svetelný zdroj 575.
Poskytuje 18 kombinovaných dichroických filtrov na miešanie farieb, 9-statických
gobosov, 5 rotačných gobosov, motorizovaný fókus, rotačnú three-facet prizmu,
full-range dimmer. strobo efekt až do 23Hz, 16 bitový rozlišovací mód pohybu,
flicker-free operating systém, ekonomický power-saving režim.
MAC 600 je automatizovaná
hlava typu Fresnel /washlight/ navrhnutá pre svetelný zdroj 575. Obsahuje 3-wheel CMY
farebný systém a 4-pozičné farebné dichrokolo, full range dimmer, oddelenú clonu,
flicker-free operating systém, ekonomický power-saving režim.
Svetlá MAC sa stali spôsobom
ako vyjadri´t vašu predstavivosť, ako spraviť vašu víziu reality a ako lepšie
vyjadriť creativitu |
|
|
FUTURELIGHT
moving head
MH-640 Washlight ponúka
vysoký výkon za priaznivú cenu. Kompaktná stavba a malá váha predurčuje svetlo k
mobilnému použitiu. CMY-color systém umožní namiešať takmer každú farbu.
High-quality motory presvedčia svojimi harmonickými pohybmi. MH-640 ma Fresnel-lens aby
mal nízku hmotnosť, ktorá by nebola možná s použitím iných šošoviek. Otáčanie
PAN má rozsah 530' a TILT 285' čo je
záruka dokonalého osvetlenia takmer v celom priestore. Spojené funkcie Shutter/Dimmer
umožňujú hladký tlmiaci, a rýchly strobe-effekt až 10Hz /10 zábleskov za sekundu/.
Špeciálne funkcie v menu kde sa menia štartovacie adresy, rýchlosť ventilátora pre
napr. divadelne predstavenie a pod. FUTURELIGHT MH-séria má vysoký svetelný výkon a
široký mouvement-angles /uhol pohybu-otáčania/
MH-660 ja svetlo typu spot,
obsahuje 11 dichro filtrov, 3-facet prisma efekt s vysoko rýchlostným rotačným
motorom, Motorizovaný fokus, stupne rotácie x a y sú zhodne s modelom 640, atď |
|
|
Svetlá
PAR 64 /1000 Watt pre malé akcie 300 až 500 Watt
PAR 64 je tradičné
svetlo, bez ktorého si akciu ani nevieme predstaviť. Vyrába sa v prevedení oceľovom
alebo hliníkovom, čiernej alebo leštenej chrómovej farby. |
|
